Vous entendez " impression 3D " partout. Cela évoque des images de petites machines de bureau imprimant des jouets et des babioles. Effacez cette image de votre esprit. Ce n'est pas notre monde.
Dans le développement de produits professionnels, nous opérons dans un univers différent. Notre monde est Impression 3D industrielle, également connu sous le nom de fabrication additive. Ce n'est pas un passe-temps. C'est un outil de fabrication puissant, précis et stratégique. Cela implique de grandes machines très avancées créant des pièces fonctionnelles en fin d'utilisation à partir de métaux certifiés et de polymères haute performance.
Ceci est un guide du fabricant pour ce monde professionnel. Nous irons au-delà du battage médiatique et explorerons les processus réels, les matériaux et les règles de conception qui transforment un fichier numérique en une pièce fonctionnelle de haute qualité. Chez JUCHENG, notre usine est équipée de ces machines de qualité industrielle. C'est le monde que nous comprenons, et ce guide est notre perspective depuis l'atelier de fabrication.
contenu :
Comprendre vos options de processus
Naviguer dans vos choix de matériaux
Penser en couches : règles de conception intelligentes
Un regard réaliste sur les tolérances
Finir le travail : post-traitement
Choisir votre outil : additif vs soustractif
Décomposer le coût final
Le voir en action : applications industrielles

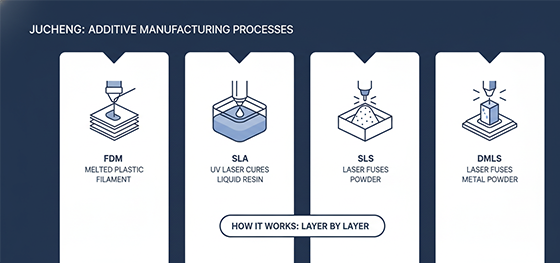

Comprendre vos options de processus
Toute impression 3D construit des pièces couche par couche. Mais la méthode de création de ces couches définit chaque processus d'impression 3D. Nous pouvons les regrouper par le type de matière première qu'elles utilisent.
Vat Polymerization is a process that starts with a vat of liquid photopolymer resin. Stereolithography (SLA) is the classic example. It uses an ultraviolet laser to precisely trace the shape of a layer, curing the liquid resin into a solid. A similar, faster technology is digital light processing 3d printing (DLP). Instead of a single laser point, DLP uses a digital projector to flash an image of the entire layer at once. This allows it to cure a whole layer in just a few seconds, making it incredibly fast for small, intricate parts.
Powder Bed Fusion works with a bed of fine polymer powder. Selective Laser Sintering (SLS) uses a powerful CO2 laser to fuse the powder particles together. HP's Multi Jet Fusion (MJF) is a different take. It uses an inkjet array to print a detailing agent and a fusing agent onto the powder, then uses a heat lamp to fuse the layer. Both create very tough, functional parts from materials like Nylon.
Metal 3D Printing, like Direct Metal Laser Sintering (DMLS) or Selective Laser Melting (SLM), operates on a similar principle but with metal powder. A high-power fiber laser melts and fuses the metallic powder in a controlled atmosphere, creating fully dense, solid metal parts.
Material Extrusion, or FDM, is the most well-known process. It melts a filament of thermoplastic and draws the part, layer by layer. While common in desktop machines, industrial FDM printers are very different. They are enclosed, heated machines that can print with high-performance materials like PEEK and Ultem.
Naviguer dans vos choix de matériaux
The true power of industrial 3D printing lies in the vast library of matériaux d'impression 3D. These are not just simple plastics; they are advanced polymers and metal alloys designed for serious engineering.
Metals are a key category for high-strength applications. We can print parts in Titanium (Ti64), known for its incredible strength-to-weight ratio, making it ideal for aerospace and medical implants. Stainless Steel (316L) offers excellent corrosion resistance for parts exposed to harsh environments. Aluminum (AlSi10Mg) is a fantastic lightweight option for thermal applications and housings. We can even print with Maraging Tool Steel to create custom mold inserts with conformal cooling channels.
Plastics offer an even broader spectrum of properties. For strong, Rigid parts, Nylon (PA11/PA12) printed via SLS or MJF is the go-to workhorse. For even more stiffness, Glass-filled Nylon provides a significant performance boost. For Transparent components, we use special Clear Resins with SLA that can be post-processed to achieve optical clarity, behaving much like Polycarbonate. For the most extreme High-Performance applications, PEEK and Ultem 9085 offer incredible heat and chemical resistance. For Flexible, rubber-like parts, we use materials like TPU and TPE, which are perfect for seals, grips, and living hinges.

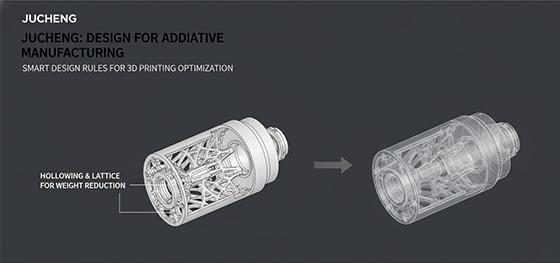

Penser en couches : règles de conception intelligentes
A successful 3D print begins on the drawing board. Designing for this technology requires a different way of thinking. This is called Design for Additive Manufacturing, or DfAM. A good conception d'impression 3D is a smart design.
The question of how to design 3d print models for success comes down to a few key principles. First, think about Wall Thickness. Try to keep it as consistent as possible to manage thermal stress. For hollowing out parts to save weight and cost, this is a great strategy. But remember to add Escape Holes. These small holes allow uncured resin or unsintered powder to be removed from the internal cavities. Without them, the part will be a solid, heavy, and expensive brick.
Another key is understanding Support Generation. Most processes need supports for overhanging features. A smart designer will orient their part on the build plate to minimize these. The "45-degree rule" is a good starting point. Most printers can build overhangs up to 45 degrees without any supports. By keeping your design within these limits, you can reduce material waste and post-processing time.
Un regard réaliste sur les tolérances
Engineers need to know about precision. A common question we get is, "how much tolerance for 3d printing is typical?" It is important to distinguish between hobbyist and industrial machines. Professional tolérances d'impression 3D are in a different league.
Generally, for industrial polymer processes, a good starting point is around +/- 0.1mm to 0.2mm for the first inch, with a small additional tolerance for each subsequent inch. This level of accuracy is suitable for the vast majority of prototyping and even some end-use applications.
So, what is a good tolerance for 3d printing? A "good" tolerance is one that is fit for purpose. For a high-resolution process like SLA, achieving +/- 0.1mm on small features is considered excellent. For a thermal process like MJF or DMLS, the tolerances might be slightly wider due to the heat involved, but the results are highly repeatable. A professional partner like JUCHENG will always provide a clear statement of our standard tolerances for each process.

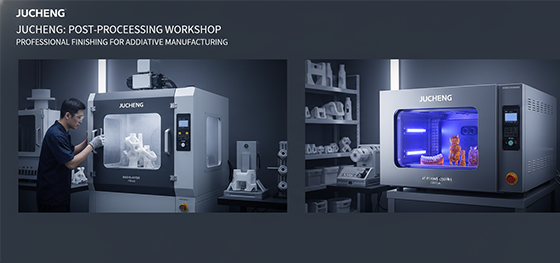

Finir le travail : post-traitement
A 3D print is rarely "finished" right off the machine. It needs professional post-traitement d'impression 3D to become a true product. This involves a range of skilled techniques.
The first step is always cleaning and Support Removal. For resin parts, this means washing in an alcohol solution and then curing in a high-intensity UV Curing Oven. For powder parts, it means carefully removing the part from the powder bed and cleaning it with compressed air or a bead blaster.
Then comes the surface finishing. Sanding with progressively finer sandpaper grids is a common method to achieve a smooth surface. For Nylon parts made with SLS or MJF, a process called Vapor Smoothing can be used. It uses a chemical vapor to slightly melt the outer surface of the part, resulting in a sealed, smooth, almost injection-molded quality finish. Finally, many parts are sent for Painting or Dyeing to achieve the perfect cosmetic look. Safety precautions are critical here, from using PPE for resin handling to proper dust control for powders.
Choisir votre outil : additif vs soustractif
A key strategic decision is choosing between a machine CNC vs imprimante 3D. They are two fundamentally different philosophies.
CNC machining is "subtractive." It is like a sculptor. It starts with a solid block of material and carves away everything that is not your part. 3D printing is "additive." It is like a potter. It builds your part from the ground up, layer by layer.
The cost difference is a major factor. For low volumes (1-10 parts) or parts with extreme geometric complexity, 3D printing is often cheaper because there are no setup costs. For medium volumes (50+ parts) of a relatively simple design, CNC is often more cost-effective because its speed per part is much faster. A true manufacturing partner offers both, so they can give you unbiased advice on the smartest choice.

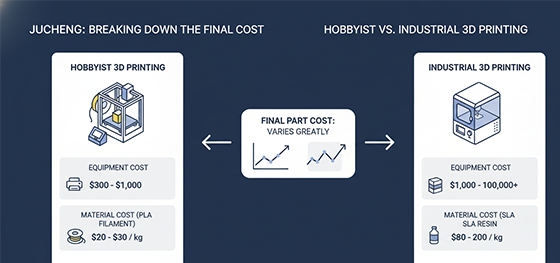

Décomposer le coût final
The final gestion des coûts d'impression 3D is a blend of several factors. A frequent question is, "how much does a 3d printer plastic cost?" The answer reveals the gap between hobby and industry.
A 1kg spool of basic hobbyist PLA filament might cost $20. A 1kg bottle of high-performance, certified industrial resin for an SLA machine can cost $200. A kilogram of certified titanium powder for DMLS can cost many hundreds more.
But material is only one part of the equation. The biggest cost driver is almost always machine time. This is determined by the total volume of your part and, most importantly, its height in the build orientation. A taller part means more layers, which means more time. Finally, the amount of skilled labor required for post-processing will also impact the final cost.
Le voir en action : applications industrielles
The true power of this technology is revealed in its real-world applications de l'industrie de l'impression 3D.
The Medical field uses DMLS to print patient-specific titanium implants. The Aerospace industry uses industrial FDM with Ultem to print strong, lightweight, and flame-retardant interior components. The Automotive industry uses SLS and MJF to create durable, functional prototypes and assembly jigs. Architects use large-format SLA to build magnificent, highly detailed scale models. And the Fashion industry is using SLS and MJF to create complex, customized wearable items with lattice structures that are impossible to make any other way. The possibilities are truly endless.
